Description
| Processor | ||
| CPU | 32-bit Freescale ColdFire® Microprocessor | |
| Memory | ||
| SDRAM | 32 MB | |
| NVRAM | 256 KB | |
| Flash | 16 MB | |
| Operating System | ||
| Real-time, preemptive, multitasking kernel, multi-threaded; FAT32 file system with long names; supports SIMPL™Windows® and SIMPL+® | ||
| Ethernet | ||
| 10/100BaseT, static IP or DHCP/DNS, SSL, auto-negotiating, full duplex TCP/IP, UDP/IP, CIP, SMTP, SNMP, built-in Web server and e-mail client; supports Crestron e-Control®2 XPanel and RoomView® applications | ||
| Video | ||
| Switcher | 5×2 crosspoint matrix, 1×4 output format selector, RGB pass-thru mode (multi-format via RGB output connection) | |
| Signal Types | RGB and composite, S-Video, or component video (does not transcode) | |
| Video/HDTV Formats | NTSC or PAL, HDTV up to 1080i/1080p | |
| RGB Formats | RGBHV, RGBS | |
| Maximum Resolution | QXGA 2048 X 1536 @ 60Hz (WUXGA 1920 X 1200 @ 60Hz via QM) | |
| Blanking Time | < 0.1 second | |
| Sync Rise/Fall Time | 3.5 ns maximum | |
| Sync Latency | < 30 ns | |
| Gain | 0dB (75 ohms terminated) | |
| Audio | ||
| Switcher/Preamp | 5×2 stereo crosspoint matrix, stereo volume/tone control on PROGRAM output, integrated power amplifier | |
| Volume Gain Range | -80dB to +20dB, 1 dB steps | |
| Mute | -100dB (electronic), -120dB (relay) | |
| Input Compensation | ±10dB | |
| Bass Gain Range | ±12dB @ 100Hz, 2 dB steps | |
| Treble Gain Range | ±12dB @ 10kHz, 2 dB steps | |
| Frequency Response | 20Hz to 20kHz ±0.5dB (PROG/LINE OUT); 20Hz to 20kHz ±0.5dB (SPEAKER @ 8 ohms); 100Hz to 20kHz ±1.5dB (SPEAKER @ 70V or 100V) |
|
| S/N Ratio | 90dB (PROG/LINE OUT @ 10dBV, 20Hz to 20kHz A-weighted); 90dB (SPEAKER @ 8 ohms, full output, 20Hz to 20kHz A-weighted); 90dB (SPEAKER @ 70V or 100V, full output, 20Hz to 20kHz A-weighted) |
|
| THD+N | 0.05% (PROG/LINE OUT @ 10dBV, 20Hz to 20kHz); 0.7% (SPEAKER @ 8 ohms, full output, 20Hz to 20kHz); 0.7% (SPEAKER @ 70V or 100V, full output, 100Hz to 20kHz A-weighted) |
|
| Stereo Separation | -75dB (PROG/REC OUT @ 10dBV, 20Hz to 20kHz); -60dB (SPEAKER @ 8 ohms, full output, 20Hz to 20kHz) |
|
| Channel Crosstalk | -70dB (AUD IN @ 10dBV, 20Hz to 20kHz) | |
| Connectors – Audio | ||
| PROG OUT | (1) 5-pin 3.5mm detachable terminal block; Balanced/unbalanced stereo line-level output, variable levels; Output Impedance: 200 ohms balanced, 100 ohms unbalanced; Maximum Output Level: 4 Vrms balanced, 2 Vrms unbalanced |
|
| LINE OUT | (1) 5-pin 3.5mm detachable terminal block; Balanced/unbalanced stereo line-level output, fixed levels; Output Impedance: 200 ohms balanced, 100 ohms unbalanced; Maximum Output Level: 4 Vrms balanced, 2 Vrms unbalanced |
|
| AUD IN 1 – 5 | (5) 5-pin 3.5mm detachable terminal blocks; Balanced/unbalanced stereo line-level inputs; Input Impedance: 24k ohms balanced/unbalanced; Balanced Input Level: -20 to +12 dBV; 4 Vrms maximum; Unbalanced Input Level: -20 to +6 dBV; 2 Vrms maximum |
|
| SPEAKER | (1 or 2) 2-pin 5mm detachable terminal blocks; Speaker-level audio outputs; Wire Size: Connector accepts 12 AWG maximum; Output Power (MPS-100): 20W RMS per channel stereo into 8 ohms, 4 ohms tolerant; Output Power (MPS-100-70V): 40W RMS mono at 70 Volts; Output Power (MPS-100-100V): 40W RMS mono at 100 Volts |
|
| Connectors – Video | ||
| COMP/Pb, Y/Y, C/Pr 1 – 2 | (2) sets of (3) BNC female video inputs, each set configurable as:
Input Level: 1 Vp-p nominal; |
|
| RGBHV 3 – 5 | (3) DB15HD female, RGBHV (VGA) inputs; Format: RGBHV or RGBS; RGB Input Level: 1 Vp-p nominal; RGB Input Impedance: 75 ohms nominal; Sync Input Level: 2 to 5 Vp-p; Sync Input Impedance: 75, 500, or 1k ohms individually selectable for H and V via bottom panel DIP switch; Video signal sensing on “H-SYNC”; Defeatable DDC pull-up resistors |
|
| COMP OUTPUT 1 | (1) BNC female, composite video output Output Level: 1.0 to 1.1 Vp-p (terminated, with 1 Vp-p input) Output Impedance: 75 ohms nominal |
|
| Y, C OUTPUT 1 | (2) BNC female, S-Video (Y/C) video output; Output Level: 1.0 to 1.1 Vp-p (terminated, with 1 Vp-p input); Output Impedance: 75 ohms nominal |
|
| Pb, Y, Pr OUTPUT 1 | (3) BNC female, component/HDTV (YPbPr) video output; Output Level: 1.0 to 1.1 Vp-p (terminated, with 1 Vp-p input); Output Impedance: 75 ohms nominal |
|
| RGBHV OUTPUT 1 | (1) DB15HD female; RGBHV, component, S-Video, and composite video output; Formats: RGBHV, RGBS, YPbPr, Y/C, composite; RGB/Video Output Level: 0.7 to 0.75 Vp-p (terminated, with 0.7 Vp-p input, unity gain); RGB/Video Output Impedance: 75 ohms nominal; H/V Sync Output Level: 4 to 5 Vp-p; H/V Sync Output Impedance: 55 ohms; H/V Sync Polarity: Follows input |
|
| TOUCHPANEL CH 2 | (1) 8-wire RJ45 female, CAT5 balanced video output port; Signal Types: Dynamically configurable for component (YPbPr), S-Video (Y/C), or composite video; Video/HDTV Formats: NTSC or PAL, HDTV up to 1080i; Output Impedance: 100 ohms balanced; Connects to CH CAT5 balanced video input port of a compatible touchpanel or other device via CRESCAT cable |
|
| TOUCHPANEL QM 2 | (1) 8-wire RJ45 female, QuickMedia output port; Signal Types: Dynamically configurable for RGBHV, component (YPbPr), S-Video (Y/C), or composite video with stereo program audio; RGB Format: RGBHV, RGBS; RGB Output Resolution, Non-interlaced: 1920 x 1200 maximum (60 Hz limit at 1600 x 1200 or higher); Video/HDTV Formats: NTSC or PAL, HDTV up to 1080i/1080p; Connects to QM input port of a compatible touchpanel or other QuickMedia device via CRESCAT-QM or CRESCAT-IM cable[1] |
|
| Connectors – Control & Power | ||
| IR/SERIAL OUT A – D | (4) 2-pin 3.5mm detachable terminal blocks; IR/Serial output ports; IR output up to 1.2 MHz; 1-way serial TTL/RS-232 (0-5 Volts) up to 9600 baud |
|
| IR IN | (1) 3-pin 3.5mm detachable terminal block; For connection of the CNXRMIRD IR Receiver (sold separately); Allows control from IR wireless remotes using RC-5 command set |
|
| INPUT 1 – 4 | (1) 5-pin 3.5mm detachable terminal block; Comprises (4) digital/contact closure inputs; Rated for 0-24 Volts DC, referenced to GND; Input Impedance: 2.2k ohms pulled up to 5 Volts DC; Logic Threshold: 2.5 Volts DC nominal with 1 Volt hysteresis band |
|
| RELAY 1 – 4 | (1) 8-pin 3.5mm detachable terminal block; Comprises (4) normally open, isolated relays; Rated 1 Amp, 30 Volts AC/DC; MOV arc suppression across contacts |
|
| COM A – B | (2) DB9 male, bidirectional RS-232 ports; Up to 115.2k baud, hardware and software handshaking support |
|
| LAN | (1) 8-wire RJ45 with 2 LED indicators; 10/100BaseT Ethernet port; Green LED indicates link status; Yellow LED indicates Ethernet activity |
|
| NET | (4) 4-pin 3.5mm detachable terminal blocks; Cresnet Master ports, paralleled; Available Cresnet Power: 30 Watts |
|
| G | (1) 6-32 screw, chassis ground lug | |
| 100-240V~2.5A | (1) IEC Socket, main power input; Mates with removable power cord, included |
|
| COMPUTER (front) | (1) USB Type B female; USB 1.1 computer console port (cable included) |
|

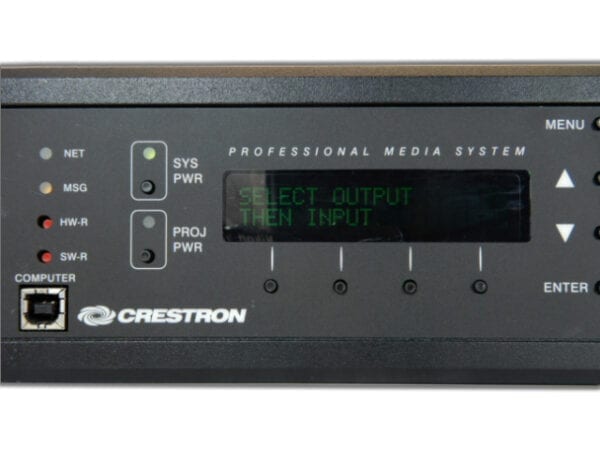

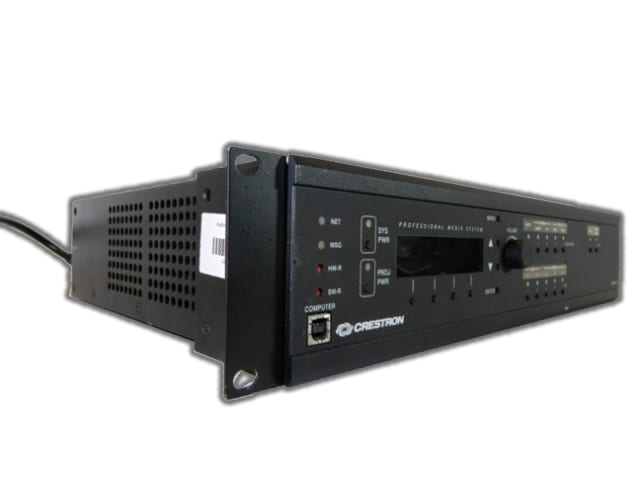

| LCD Display | ||
| Green LCD alphanumeric, adjustable backlight; 2 lines x 20 characters per line; Displays input/outputs by name, volume level bargraph, setup menus, time/date, and other system information |
||
| Controls and Indicators | ||
| NET | (1) yellow LED, indicates Cresnet bus activity | |
| MSG | (1) yellow LED, indicates control system has generated an error message | |
| HW-R | (1) recessed miniature pushbutton for hardware reset, reboots the control system | |
| SW-R | (1) recessed miniature pushbutton for software reset, restarts the SIMPL program | |
| SYS PWR | (1) pushbutton and green LED, controls system power | |
| PROJ PWR | (1) pushbutton and green LED, controls display device power | |
| SOFTKEYS | (4) pushbuttons for activation of LCD driven functions and passcode entry | |
| MENU | (1) pushbutton, steps menu back one level | |
| Λ, V | (2) pushbuttons, scroll up or down through menu and adjust menu parameters | |
| ENTER | (1) pushbutton, executes highlighted menu or value | |
| VOLUME | (1) continuous turn rotary encoder, adjusts menu parameters, defaults to program audio volume | |
| FUNCTION 1 – 5 | (5) pushbuttons and red LEDs, programmable for any control system function | |
| IN 1 – 5 | (5) pushbuttons and red LEDs, select input to be routed | |
| OUT 1 – 2 | (2) pushbuttons and red LEDs, select output destination | |
| Power Requirements | ||
| Main Power | 2.5 Amps @ 100-240 Volts AC, 50/60 Hz | |
| Available Cresnet Power | 30 Watts | |
| Environmental | ||
| Temperature | 41° to 104°F (5° to 40°C) | |
| Humidity | 10% to 90% RH (non-condensing) | |
| Enclosure | ||
| Chassis | Steel, black matte powder coat finish, convection-cooled, vented top and sides | |
| Faceplate | Extruded aluminum, black matte powder coat finish with polycarbonate label overlay | |
| Mounting | Freestanding or 2U 19-inch rack-mountable (adhesive feet and rack ears included) | |
| Dimensions | ||
| Height | 3.56 in (90 mm); 3.47 in (88 mm) without feet |
|
| Width | 17.03 in (433 mm); 19.0 in (483 mm) with ears |
|
| Depth | 12.54 in (319 mm) | |
| Weight | ||
| MPS-100 | 8.8 lb (4.0 kg) | |
| MPS-100-70V/100V | 10.6 lb (4.8 kg) | |
